    Bethel Park Reserve Road Salt Storage

    placeholder-1140x400

    The Rundown

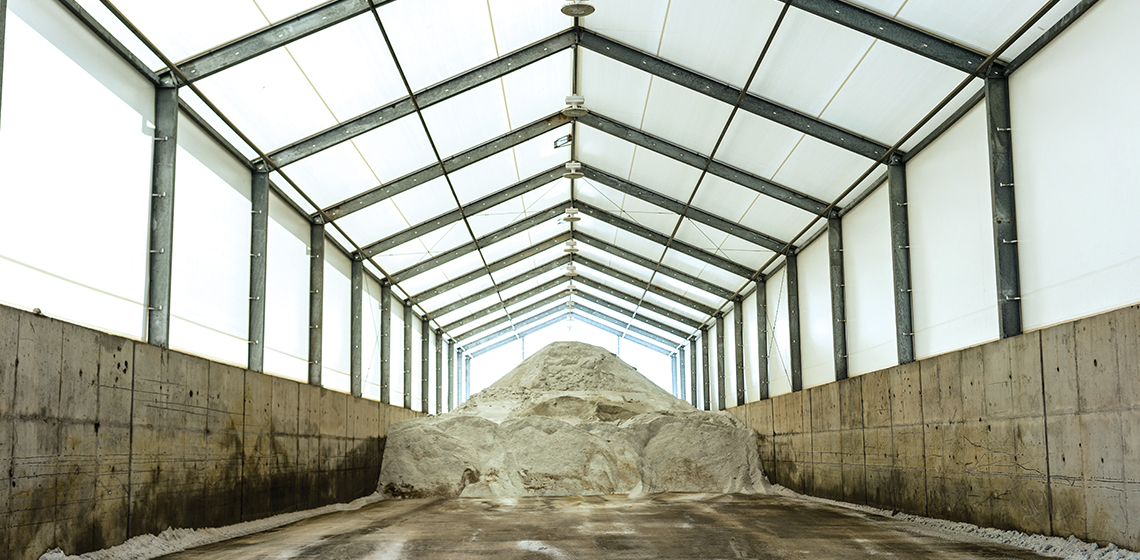

    When state regulations required a permanent facility for road salt storage, the city of Bethel Park installed a fabric structure on a steel frame. Bethel Park worked with Legacy to procure a custom building 45 feet wide and 260 feet long, designed and installed within a tight timeline and on a difficult site.

    Feature Details

    • 45 ft x 260 ft (11,700 sq ft)
    • 24 ft straight interior sidewall clearance on 10’ cast-in-place walls
    • Solid rod cross bracing
    • Hot dip galvanized steel components
    • Patented keder rail fabric attachment system; individual fabric panels attached to each frame
    • Flame-retardant fabric double-layered and laced to all vertical wall columns and purlins
    • 18-in eave extensions with mesh soffit ventilation
    • 5 ft x 6 ft gutter plus icebreakers
    • 6 ARV 2000 roof ventilators for attic cavity ventilation
    • Installed by Legacy crews
    • 25 psf ground snow load, 90 mph windspeed, wind exposure C, seismic B, enclosed, fully exposed
    • Building use: Reserve salt storage
    Download Case Study

    Industry

    State & Municipal

    Size

    11,700 sq ft

    Location

    Bethel Park, PA

    Year

    2017
