Ellington Racquet Club
The Rundown

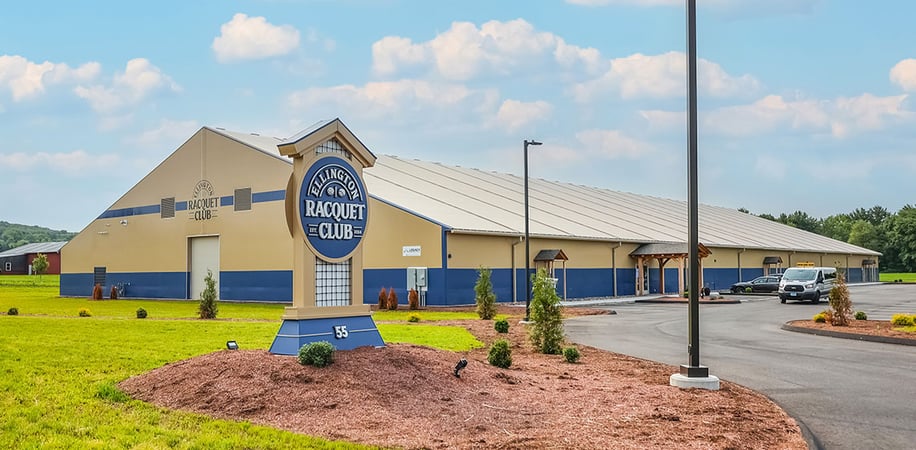

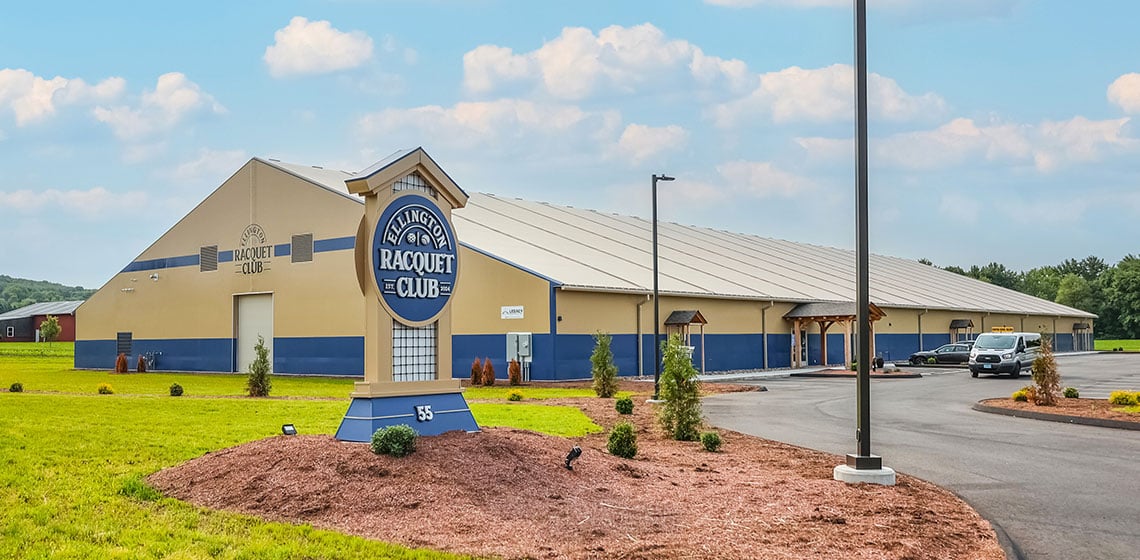

The Ellington Racquet Club is a 44,880 sq ft indoor sports facility designed and installed by Legacy crews. Built with gray primed rigid steel frames and clad in tan and blue 28 oz. ExxoTec™ Elite fabric, the structure combines strength and aesthetics, while a white 19 oz. ExxoTec™ Pro liner brightens the interior. Engineered for 120 mph wind loads, 35 lb ground snow loads, and seismic category B, the building also includes gutters, downspouts, 33 ARV-2000 roof vents, and 18-in mesh soffit eaves for reliable water mitigation and passive ventilation.
Inside, the facility offers R-30 insulation, a spacious reception and viewing area, locker rooms, and eight indoor courts—four tennis and four pickleball. Two overhead coil doors, five walk doors, and a non-traditional MEP system supported by fans and a dedicated ventilation system ensure accessibility and comfort.
Feature Details
- 136 ft x 330 ft (44,880 sq ft)
- 120 mph wind load, 35 lb ground snow load, exposure C, seismic B
- Gray primed rigid steel frames
- Tan and blue 28 oz. ExxoTec™ Elite on the exterior
- White 19 oz. ExxoTec™ Pro for the interior liner
- Gutters and downspouts for water mitigation
- 33 ARV-2000 roof vents and 18-in eaves with mesh soffits for passive ventilation
- Two 10 ft x 12 ft coil overhead doors on each endwall and five walk doors
- The building includes R-30 insulation, a spacious reception and viewing area, locker rooms, and eight indoor courts—four for tennis and four for pickleball
- Facility features a non-traditional MEP system but is complemented by fans and a dedicated ventilation system
- Installed by Legacy crews
Industry
Sports & Recreation
Size
44,880 sq ft
Location
Ellington, CT
Year
2023
