    Los Bronces Temporary Truck Shop

    placeholder-1140x400

    The Rundown

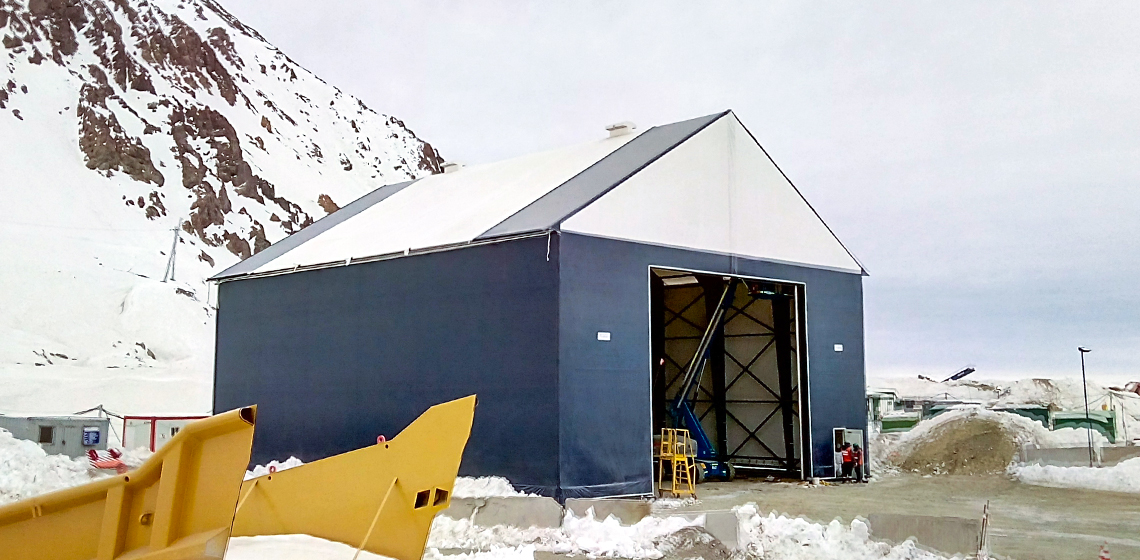

    A great example of a mining fabric building, this CAT storage structure is located high in the mountains of South American and engineered for 246 psf snow load. The large rubber roll-up door keeps the elements out.

    Feature Details

    • Building size: 66 ft x 82 ft
    • Designed to store and maintain a CAT 795F mining dump vehicle
    • All building steel, components and hardware are primer coated
    • 29.5 ft inside eave clearance
    • 7/12 roof slope
    • One personnel door
    • 36 ft x 27.8 ft overhead rubber rolling door with additional custom framing
    • Two RV-3000 peak-mounted passive vents and mesh soffits
    • Built 3,500 meters (11,482 ft) above sea level
    • Legacy tech rep installation with local crews
    • 246 psf snow, 75mph wind load, fully exposed, enclosed structure, seismic D
    • Building Use: Maintenance Garage

    Industry

    Mining

    Size

    5,412 sq ft

    Location

    Santiago, Chile

    Year

    2015
