    Basin Electric Power Cooperative Bottom Ash Dewatering Facility

    placeholder-1140x400

    The Rundown

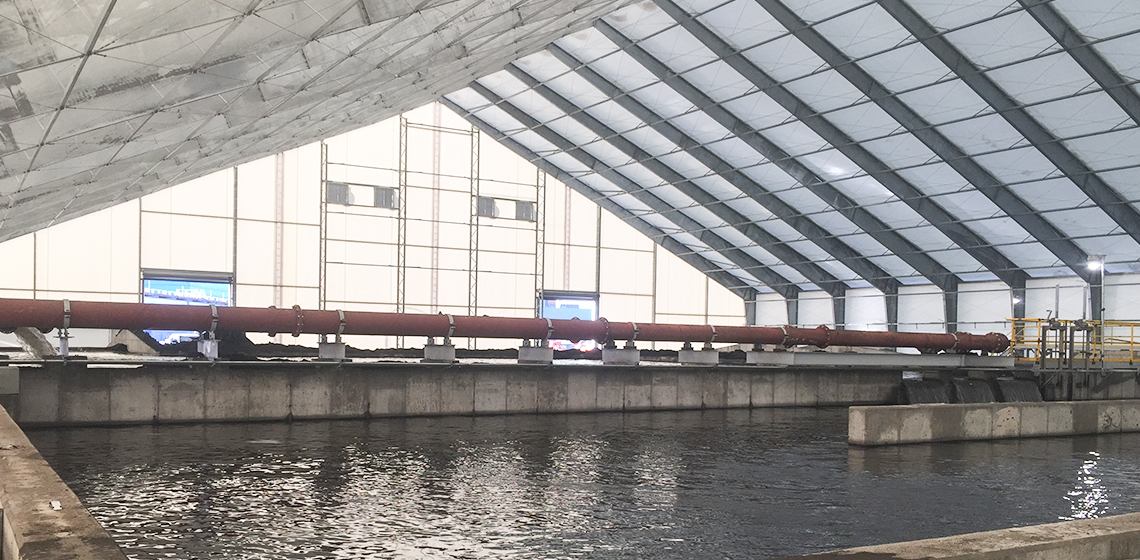

    This bottom ash dewatering facility was designed, manufactured and installed by Legacy crews – including doors, LED lighting and ventilation. Crews installed the building over existing equipment. Eave extensions and a powered ventilation system provide six air turns per hour.

    Feature Details

    • Building size: 220 ft x 240 ft
    • Hot dip galvanized steel frame and components
    • Flame-retardant polyethylene fabric
    • Passive and active exhaust ventilation system for six air-turns per hour
    • 36-in eave extensions with icebreakers
    • Eight 22,370 cfm exhaust fans
    • Twenty 3,000 cfm passive peak mounted exhaust vents
    • Personnel and overhead roll-up doors supplied and installed by Legacy
    • Thirty six high-bay LED lights supplied by Legacy
    • Additional framed heating system exhaust portals
    • Installation over active process bunkers and existing piping
    • Project completed on time and on budget
    • Designed for 40 psf ground snow, 115 mph wind – 3 second gust
    • Building use: Interim system enclosure for bottom ash dewatering at a coal fired power plant

    Industry

    Oil Gas & Energy, State & Municipal, Waste & Recycling

    Size

    52,800 sq ft

    Location

    Stanton, ND

    Year

    2015
