CGB Graber
The Rundown

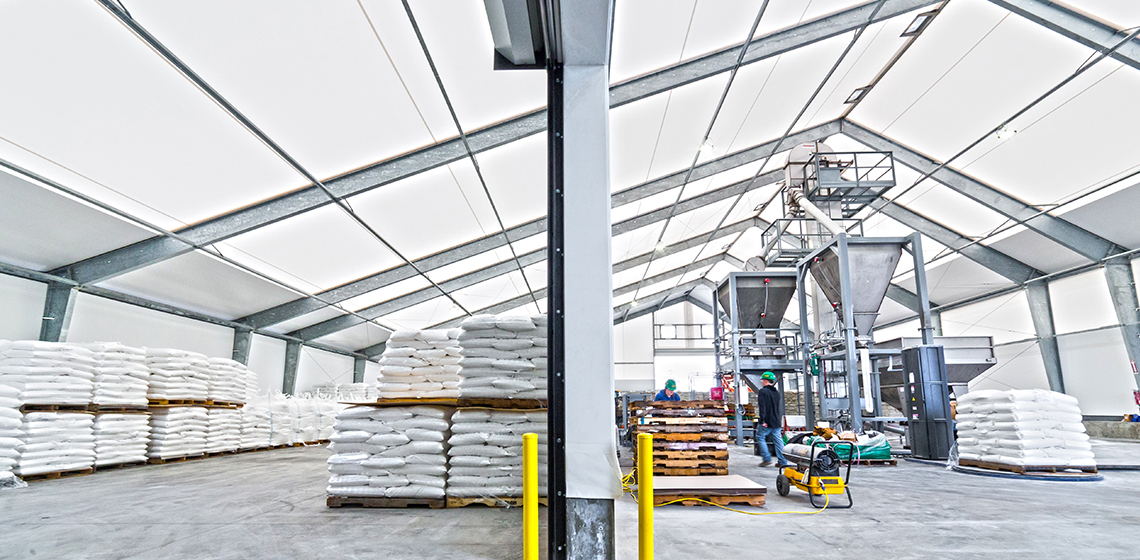

CGB Enterprises is a global grain and transportation company that serves the agriculture industry. When business growth led to the expansion of their Naples, Illinois, facility, they needed a building solution that would accommodate both bulk salt and bagged product for distribution to corporate and individual clients.
Feature Details
- 100 ft x 150 ft (15,000 sq ft)
- Offset peak with fabric wall between two sections
- CIP concrete foundation with stem walls
- All steel framing members hot dip galvanized
- ExxoTec™ Elite PVC fabric – white with gray trim
- Overhead doors for heavy equipment access
- 20 psf snow load, 90 mph windload, exposure C, full exposure
- Building use: Agricultural salt bagging and distribution
Industry
Bulk Commodity
Size
15,000 sq ft
Location
Naples, IL
Year
2018
Testimonials
The whole engineering phase with Legacy was excellent.
They were very responsive to our ideas and turned things around very quickly. Even the installation was fast—the whole building was erected in about seven days. The fabric roof allows a lot of natural light into the building, which is a big advantage on the operations floor, since it reduces our need for artificial lighting inside. It provides significant sheltering from rain, wind and cold. Even though we didn't have it insulated, it's still noticeably more comfortable inside during the winter. The structure actually provides more of a shading and cooling effect. The Legacy building has performed at or above expectations in many ways. And on top of its functionality within our process, it offers environmentally friendly features in its own right. It's a great system for our application.
Legacy pricing is very compatible to your competitors.
We needed something that would withstand the corrosive environment better than our current building. What first drew us to Legacy was the concept of the rigid steel frame with fabric. We feel the rigid frame will give us many more years of service than the open web structures. Legacy's attention to detail, answering of endless questions that we had and prompt response to those questions also played a role in our decision to go with Legacy. And because so many details were ironed out in the beginning we built a very good building with very few modifications to the scope during the building process. We felt you could deliver on what you were proposing. Another plus for going with Legacy was the fact you had crews who were MSHA trained and you already had an MSHA Contractor ID. Your crew worked efficiently and safely. Once we were assured the liner cavity could be vented properly, the liner option seems to be a great add on for our environment. It is very obvious this will help in reduction of dust resting on the trusses. We liked the fact this building could be built with no cables. Instead, we used hot dipped galvanized steel rods. We are very proud to have partnered with Legacy to construct our Salt Containment Structure. We feel we now have a long term solution to our salt storage needs, a building that will be around for a long time to come.
The tripper works just as planned – which basically doesn’t ever happen.
The building is working out better than we thought it would. The tripper is supported from the frame and works just as planned – which basically doesn’t ever happen.
