Highland WRF Covered Sludge Storage


    The Rundown

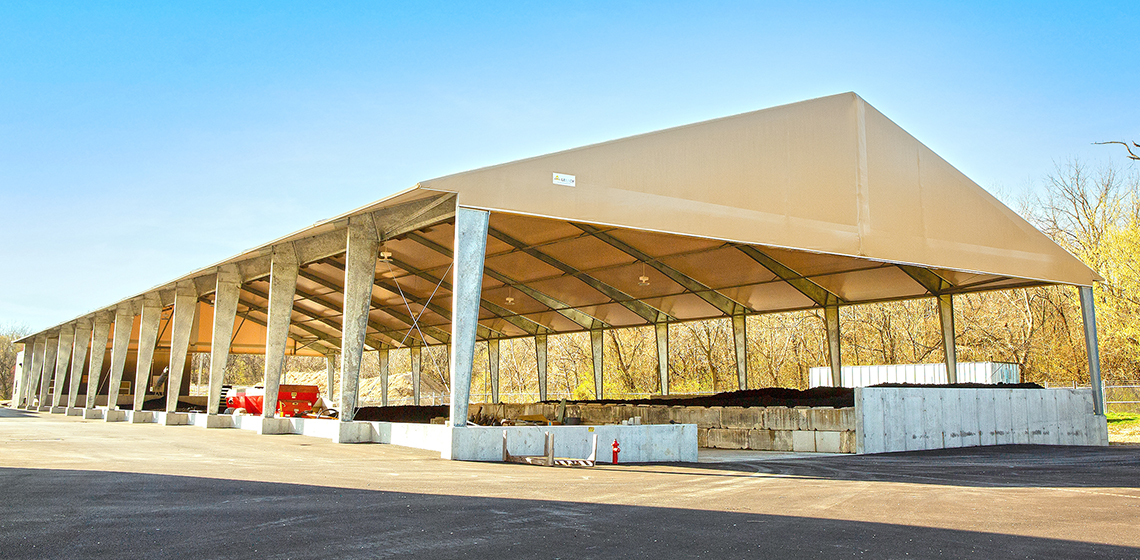

    The City of Highland, IL was embarking on an extensive upgrade to its wastewater treatment plant. As part of that renovation, they needed a covered building that would keep their biosolid sludge dry and away from the elements. Legacy delivered a building that met their needs, extended their abilities to manage the sludge AND fit into their budget. “This Legacy building has been a very useful upgrade,” said plant supervisor Bill Zimmer.

    Feature Details

    • Building size: 85 ft x 240 ft (20,400 sq ft)
    • Hot dip galvanized rigid steel frames
    • Tan ExxoTec™ Elite PVC fabric cladding
    • Open-air pavilion design with partial endwalls
    • 36-in eaves to keep interior protected from the elements
    • Tan ARV-2000 roof ventilators for passive ventilation
    • Conveyor supports for cake screw conveyor
    • 20 psf ground snow load, 105 mph wind speed, seismic zone D
    Download Case Study


    State & Municipal, Waste & Recycling


    20,400 sq ft


    Highland, IL
