Pontotoc Sands: Frac Sand and Proppant Storage Solutions
The Rundown

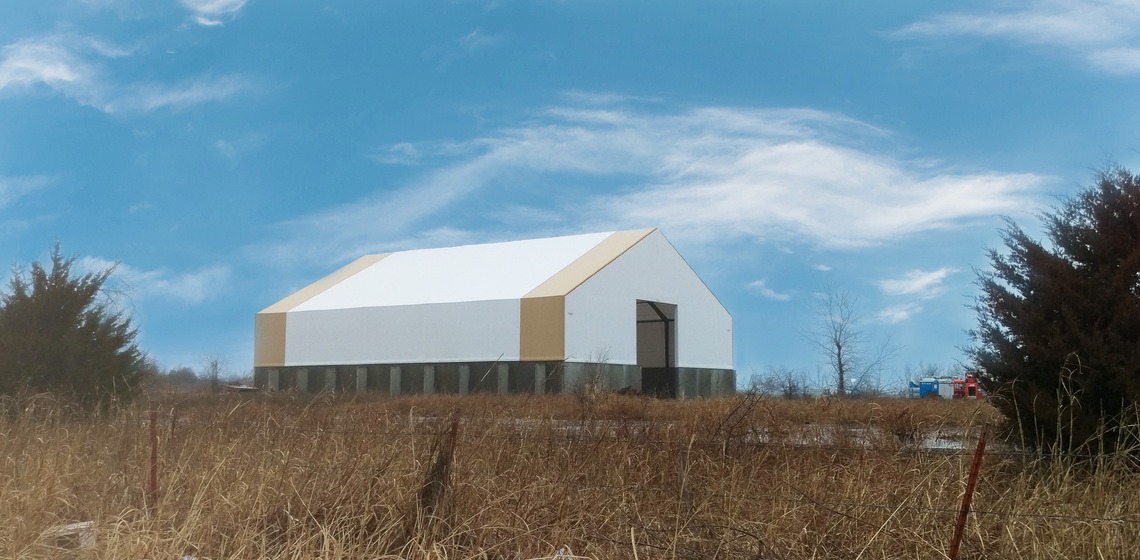

Pontotoc Sands Company is a supplier of sand and aggregates for fracking and industry. The increase in fracking activity near their El Reno, Oklahoma location required additional space to store and distribute sand.
Feature Details
- Building size: 80 ft x 100 ft
- Wide flange rigid steel frames
- Gray primed steel components
- PE fabric – white with tan
- Eco attachment system – single panel double-layered and laced to all fabric-contacting steel members

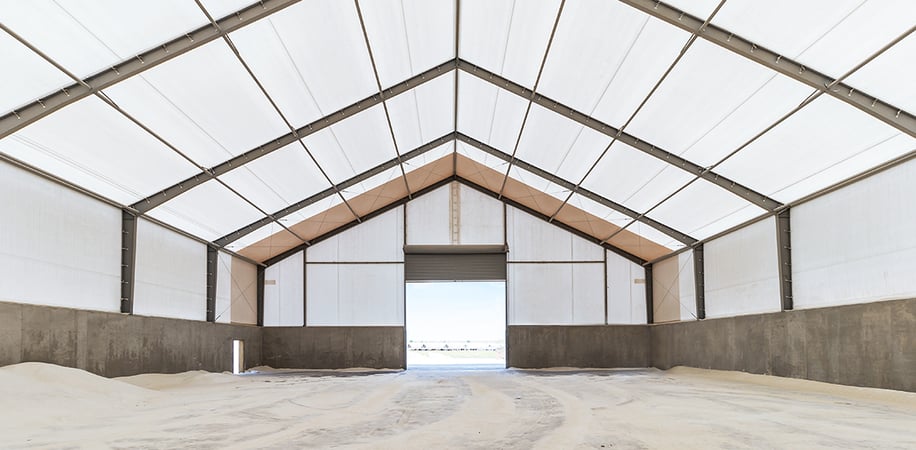

- 10 ft above grade CIP concrete wall
- Fabric direct bolt terminated to exterior of CIP wall
- Built to IBC 2015 criteria
- Two 48 ft x 48 ft fix-bladed aluminum louvers framed and installed in end wall
- 10 psf snow load, 105 mph windspeed, exposure C, seismic zone B, collateral 1 psf, enclosed, fully exposed, low occupancy
- Building use: Frac sand and proppant storage
Industry
Bulk Commodity
Size
8,000 sq ft
Location
El Reno, OK
Year
2017
Testimonials
Working with Legacy was great.
Cost was the initial factor for selecting Legacy, but once we saw the engineering that goes into their design, we understood that could make it easy for us to expand the building in later phases. We also liked its compatibility with conventional construction. There are a lot of possibilities we could explore in the future. The guys who constructed the building worked under some really, really tough conditions, but they wrapped it up on the afternoon of Christmas Eve, and the building opened Christmas morning. Everyone was very responsive, and it was a pleasure to work with them. Once visitors got into the building and we experienced the interior environment with the heat flow and the insulation, we were very satisfied.
We were very impressed by their engineering team.
By today's standards, the buildings we're designing are of world-class caliber in the U.S. and Canada. Legacy offered several features that put them at the top of the list. They are unique among fabric buildings in that they build on a rigid steel frame. Everything looked good, from the eave and ridge ventilation system to the method for installing fabric panels. Combined with material delivery times and the time to construct, Legacy seemed like the perfect choice for our application. "The whole design is very efficient for our operations. Flexibility is key, especially when the building is a 'first of its kind' for the industry. We had one design change after the whole plan was in place, to widen our trapeze in the structure that supports the conveyor, and Legacy was able to make that change without any problem. The conveyor system fits and operates just as it was designed. "Legacy knew our schedule and saved us over 30 days of downtime. They stood the frames for the entire fabric structure in a single day, and everything - conveyors, electrical, fabric - was completed within five weeks of them coming to the site. It was a Herculean effort on Legacy's part. It was fantastic. They have a very passionate team, from top to bottom. In all respects, from design to pricing to production, Legacy is one of the best building contractors I've ever worked with. I look forward to working with them again.
We had a great working relationship with Legacy
A lot of the temporary structures in the region are fabric structures, so we mainly looked at those types of buildings. Due to the overall project timeline, the buildings had to be constructed in the dead of winter. We had a great working relationship with Legacy throughout the entire process. They supply a very high quality fabric structure, and we're certainly pleased with what we've seen from the buildings thus far.
