Max Rhoads Wastewater Settling Tank Cover


    The Rundown

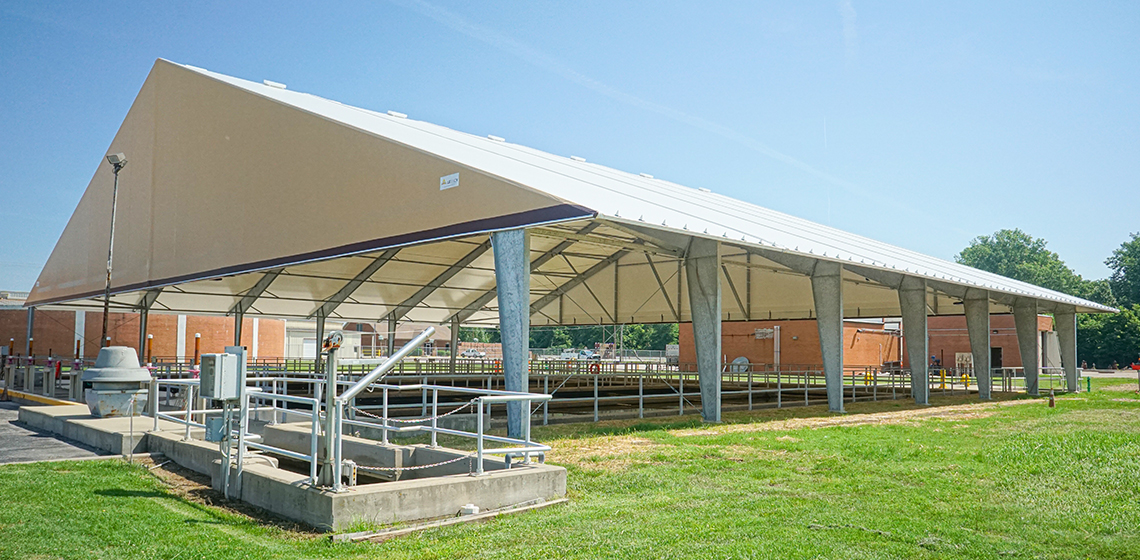

    Pavilion-style buildings are used to cover multiple settling tanks at a wastewater treatment plant. The fabric structures were designed to withstand extremely high winds and were installed over existing settling tanks with minimal interruption of business.

    Feature Details

    • 136 ft x 112 ft (15,232 sq ft)
    • Hot dip galvanized solid steel frame
    • Fire-retardant polyethylene fabric roof and gables
    • Pavilion-style building with 12’ open sidewalls on all four sides
    • 4-ft eave extensions along sidewalls
    • Aluminum roof vents for peak exhaust
    • Installed over existing settlement tanks
    • 15 psf ground snow load, 20 psf live snow load, 115 mph windspeed, wind exposure C, seismic zone D, fully exposed, normal occupancy
    • Building use: Wastewater treatment plant
    Download Case Study


    State & Municipal, Waste & Recycling


    15,232 sq ft


    Owensboro, KY
