    Frac Sand Storage Building

    placeholder-1140x400

    The Rundown

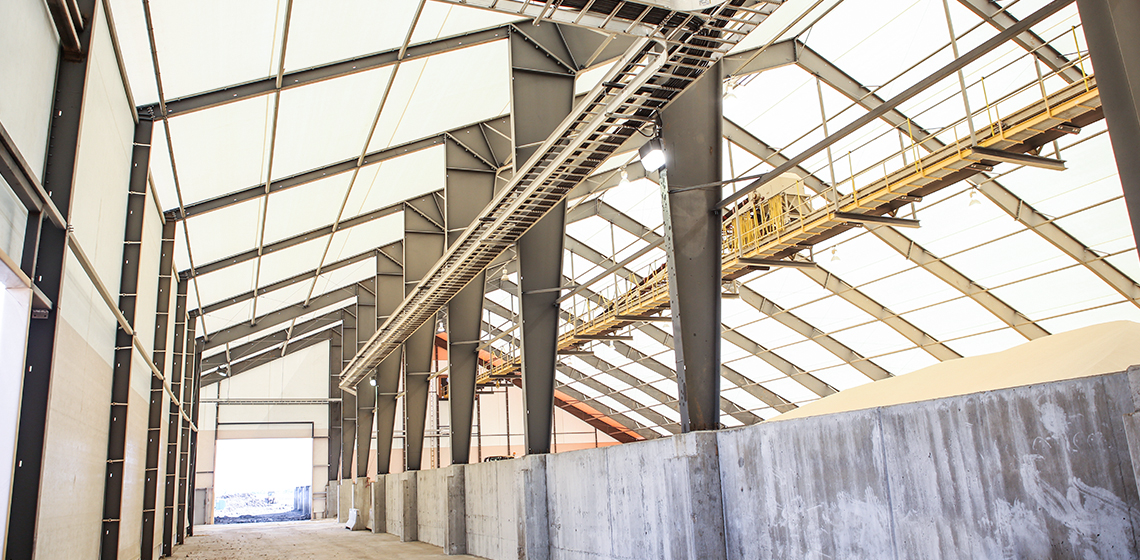

    This massive transload building for frac sand uses a conveyor and lean-tos for easy loading. Bulk frac sand is contained in a concrete storage bin, accessible by loaders and trucks inside the building.

    Feature Details

    • Building Size: 120 ft x 480 ft
    • Offset peak frac sand storage building with concrete wall system
    • Lean-to extensions for customer operations:
    • Area divided for truck load-out, operations shop and storage – includes full fabric liner and cavity ventilation system
    • Engineered for conveyor and cat-walk loads
    • Passive ventilation system includes twelve 3,000 cfm roof peak vents and full mesh soffits under all overhangs
    • Product loading and unloading accommodated in the structure’s design
    • This fabric building in Alberta meets Canadian codes and loads: ABBC 06LS/NBC 05, CSA A660
    • Wind pressure 0.4 3kPa (9 psf), snow 2.3 kPa (48 psf), rain 0.1 kPa (2 psf)
    • Open exposure, partially enclosed, standard occupancy
    • Building Use: Frac Sand Storage

    Industry

    Mining

    Size

    57,600 sq ft

    Location

    Wembley, AB

    Year

    2013
